Technical specifications Hanse 370e #671

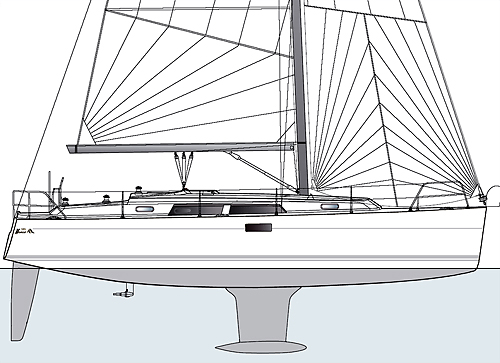

Click on picture to open broschure with all details + standard equipment


LOA 11,35 m
Hull length 11,25 m
LWL 10,05 m
Beam 3,75 m
Draft 1,95 m

Displacement 6,8 t (epoxy option)
Ballast approx 2.165 kg
Engine Yanmar 3YM4 29,4 kW / 40 HP
Fresh water approx 325 l
Fuel tank approx. 140 l
CE Certificate A (ocean)

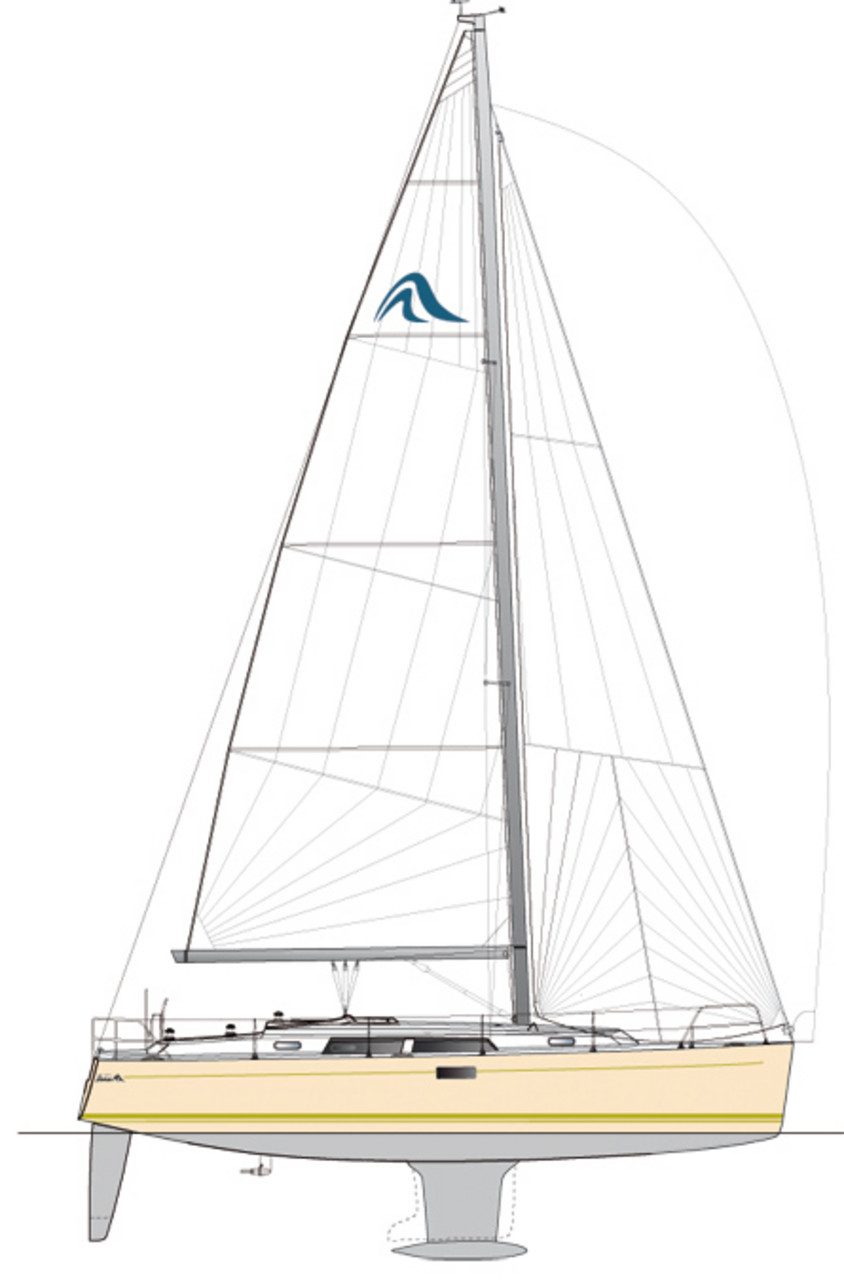

Mast length above WL 17,77 m
Total sail area approx. 57,40 mē
Main sail approx 42,50 mē
Self-tacking jib approx. 28,60 mē

Rig I 15.00 m
J 4,15 m
P 14,40 m
E 5,15 m

Design judel/vrolijk  & co
Interior Hanse Yachts Design

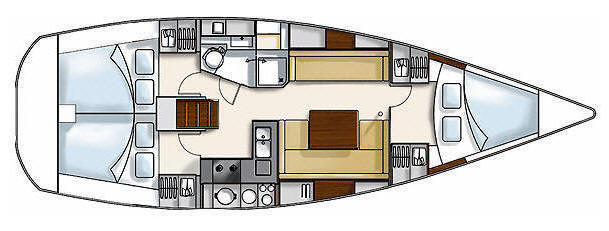

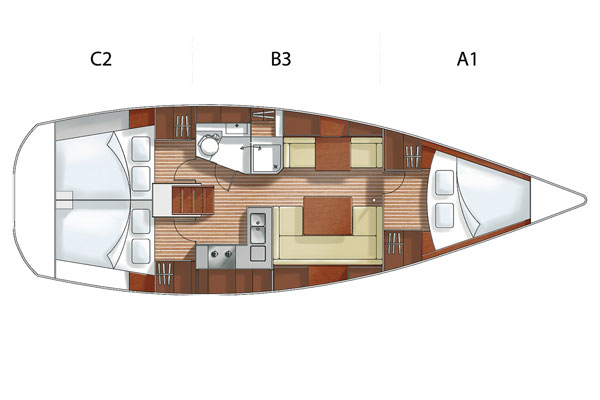

C2                             B4                       A1



Legened
C2 = double aft cabins
B3= Chart table on portside
B4 = Long sofa on portside
A1 = closets on both sides in foreship


Color codes for Hanse 370e #671

RAL chart with colors only, click here and RAL chart with colors and names, click here


Hull RAL 9003 (Signal white)

Water line RAL 7043 (Traffic grey)

Bottom antifouling International Micron Extra, light grey (Micron Extra black and Micron Extra grey
mixed in ratio 1:2,5. Painted with 2 x Epoxy Primer International and 2 x Micron Extra International

  Data delivered by Yachtwerft Greifswald GmbH per 2009-11-17


Other suggestions of color mixing for the antifouling provided by resellers and members from the Swedish Hanseforum

Marinparken.dk International Trilux 2 x white to 1 x black

Idelfix/Swedish Hanse club 2 liter white and half liter black Mille Light, stire well!

Babba/Swedish Hanse club Painted April 2008 on the shipyard in Greifswald with International Trilux. Its not possible to buy it in Sweden in grey color but can be bought in Germany.
