  Engine 3JH4E, diesel


All pictures with curtesy of Lidingömarin, Sweden

Exploaded view no. 01
Group: Cylinderblock and crank shaft
Part: Cylinderblock

02 129150-02930 - TRYCKLAGER
03 129001-02930 - RAMLAGER
04 129150-02940 - TRYCKLAGER JH UD 0.25
05 129150-02870 - RAMLAGER JH/JH2/JH3 UD=0.25
06 129150-02020 - SKRUV 4JH
07 124160-01910 - PLUGG
08 124060-01050 - PLUGG 1/8
11 129795-02411 - BUSSNING 3/4JH
13 129150-01200 - PINNSKRUV TOPP 4JH
14 129001-01340 - TOPPAKNING 3JH4
15 171051-01921 - PLUGG
16 27241-120000 - KÄRNSTÖDSBRICKA

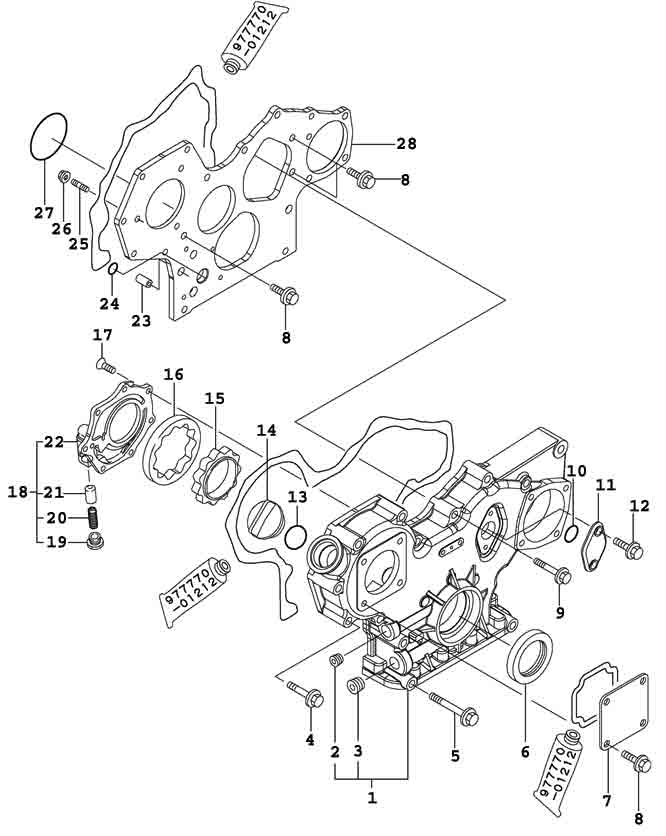

Exploaded view no. 02
Group: Cylinderblock and crank shaft
Part:
bröstkåpa

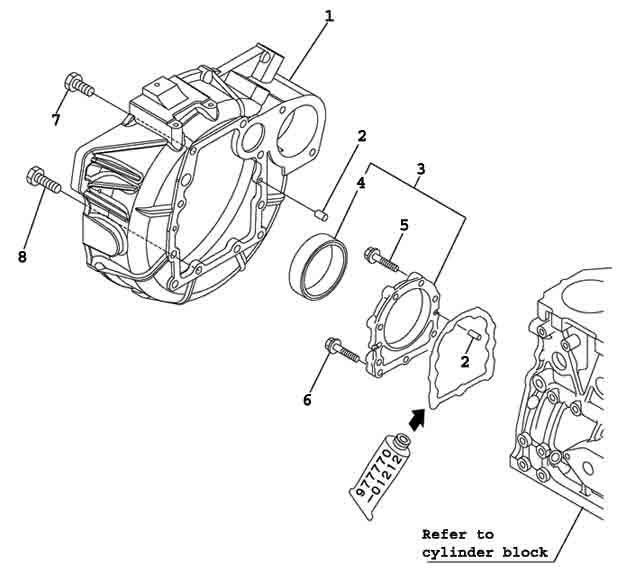

Exploaded view no. 03
Group: Cylinderblock and crank shaft
Part: Flywheel housing

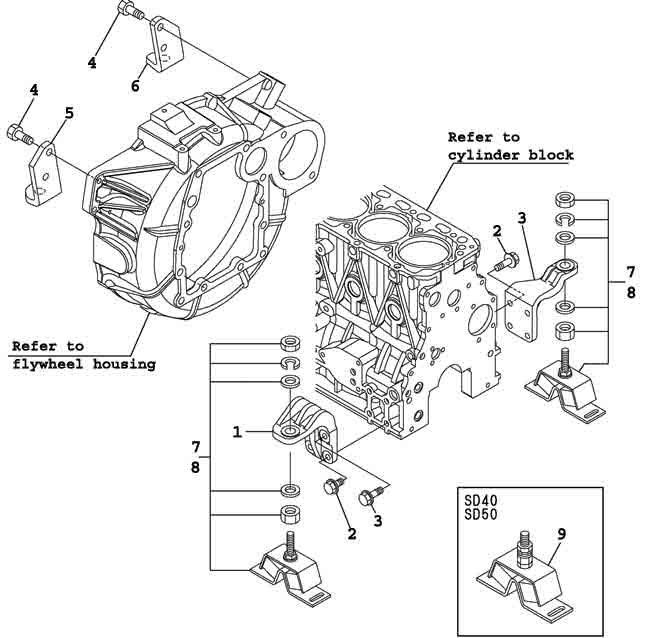

Exploaded view no. 04
Group:
Part:

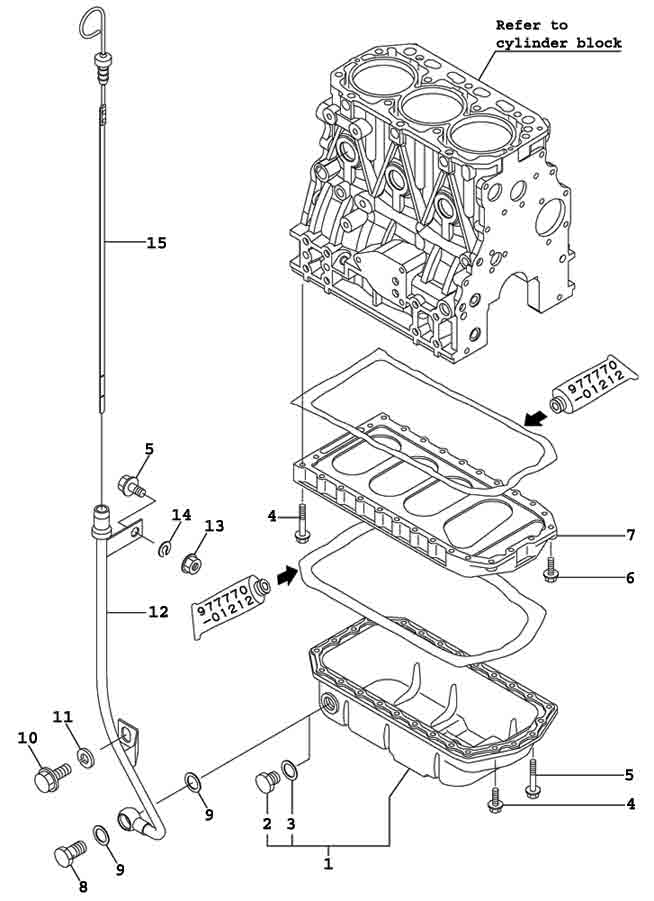

Exploaded view no. 05
Group:
Part:




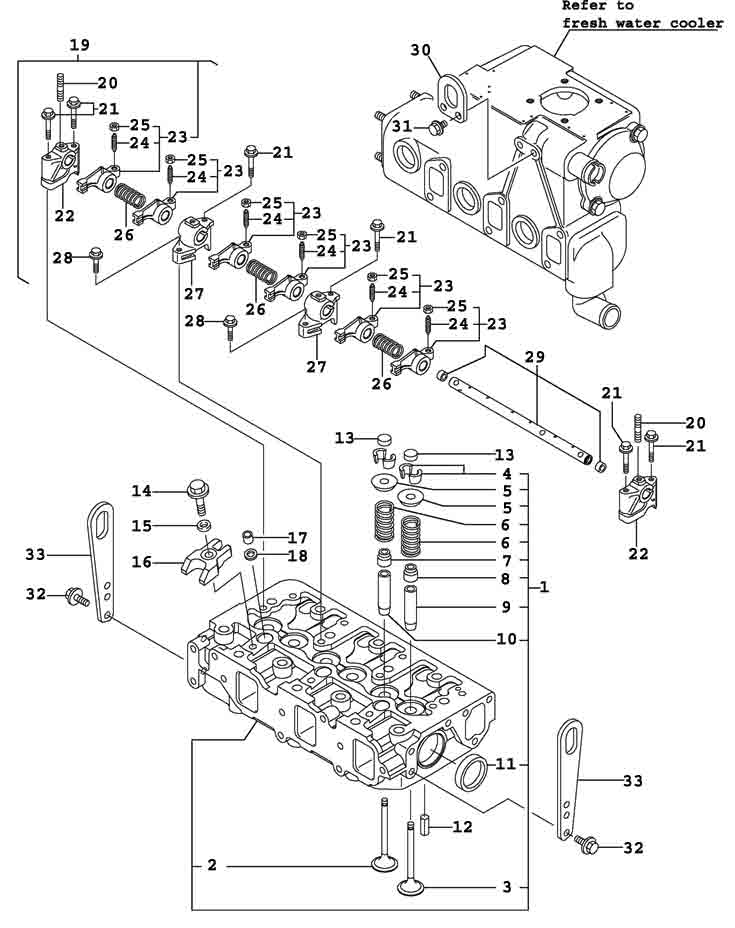

Exploaded view no. 07
Group:
Part:



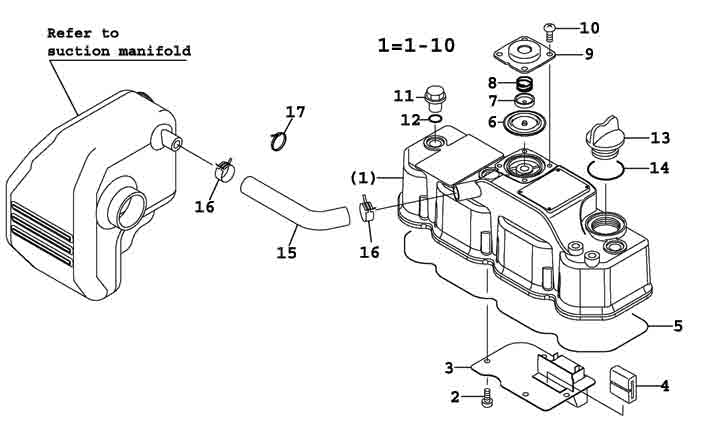

Exploaded view no. 08
Group:
Part:



Exploaded view no. 09
Group:
Part:



Exploaded view no. 10
Group:
Part:

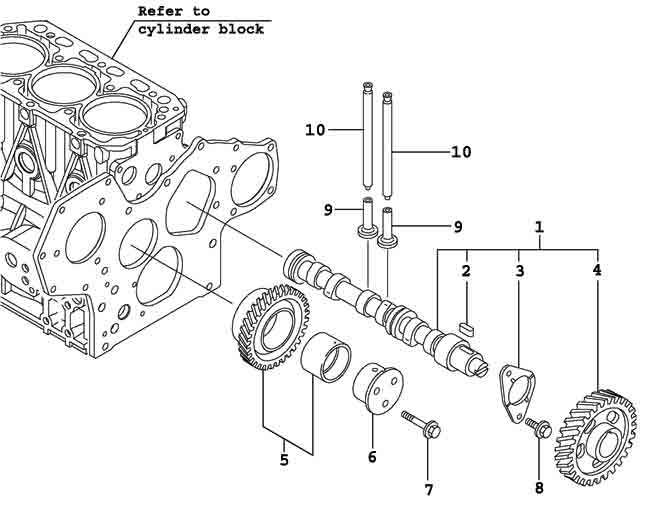

Exploaded view no. 11
Group:
Part:



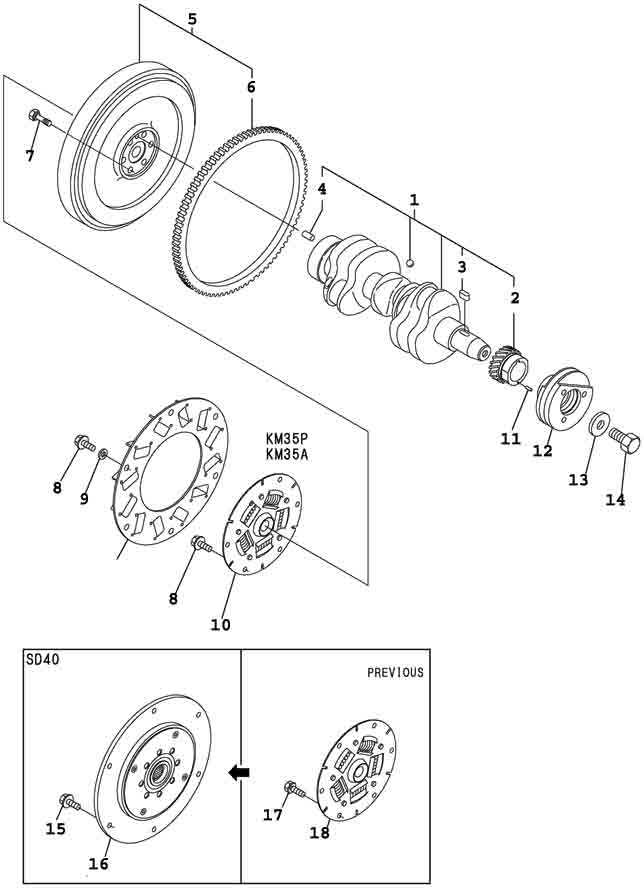

Exploaded view no. 12
Group:
Part:



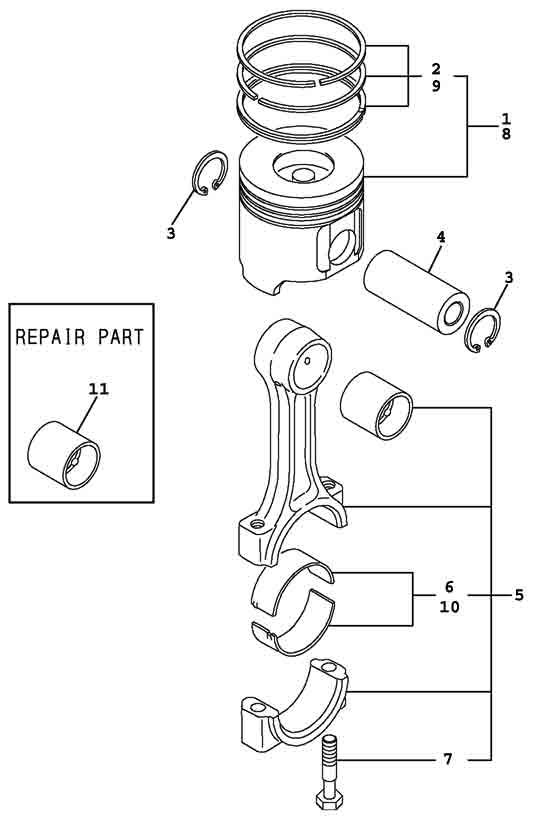

Exploaded view no. 13
Group:
Part:



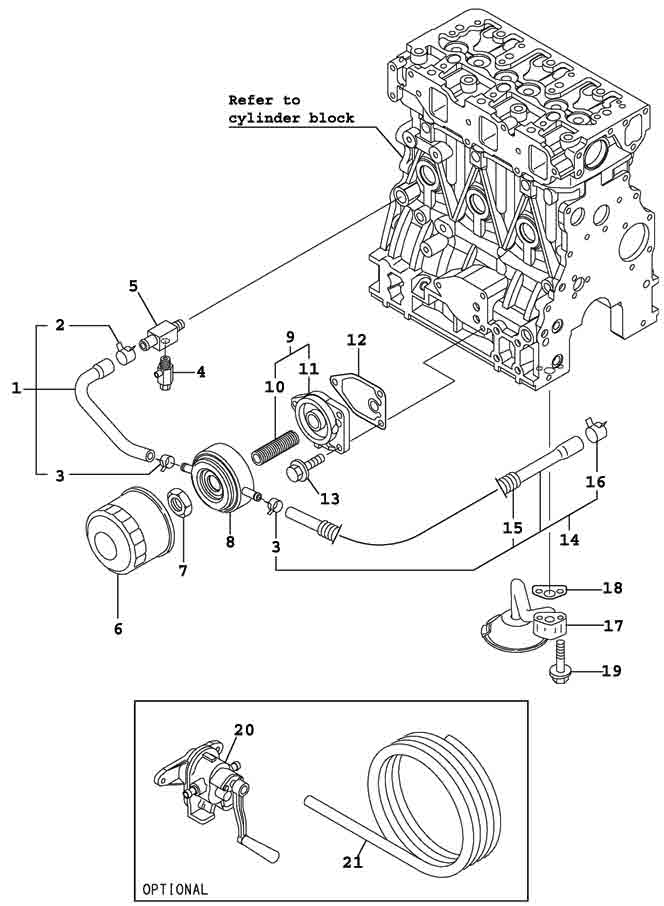

Exploaded view no. 14
Group:
Part:



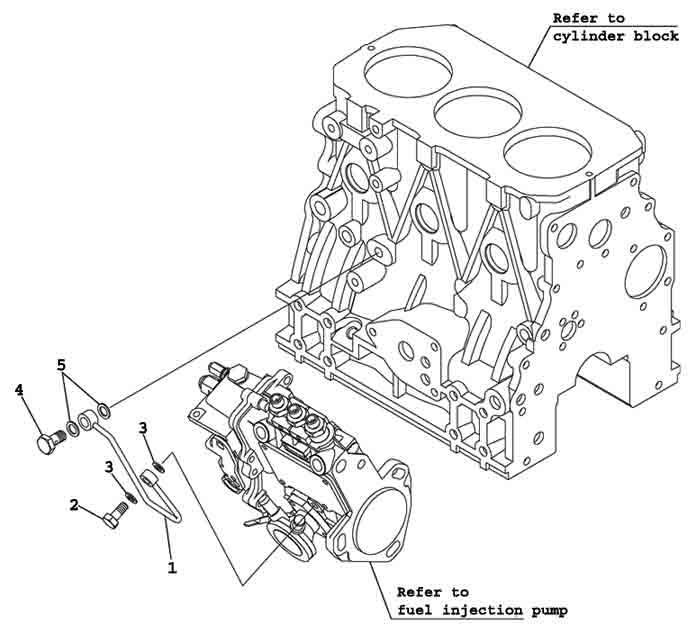

Exploaded view no. 15
Group:
Part:

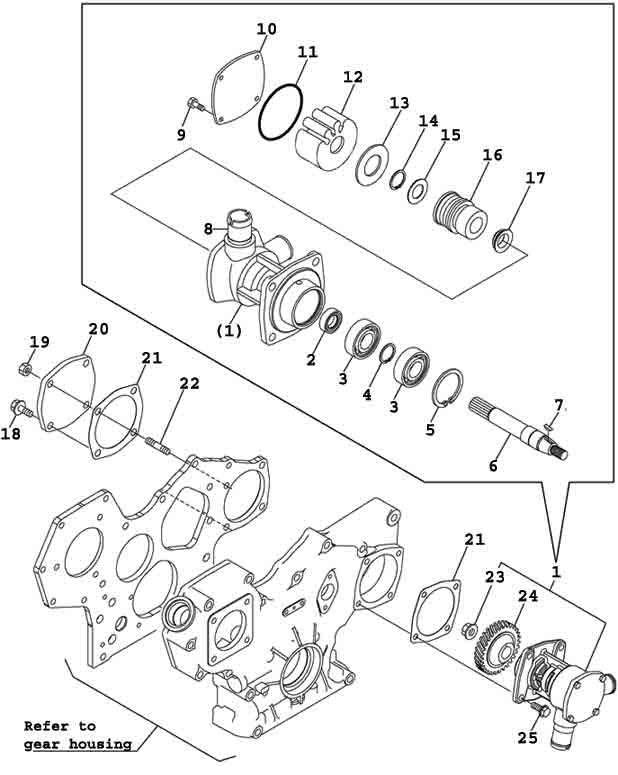

Exploaded view no. 16
Group: Coo
ing system
Part: Sea water pumpl

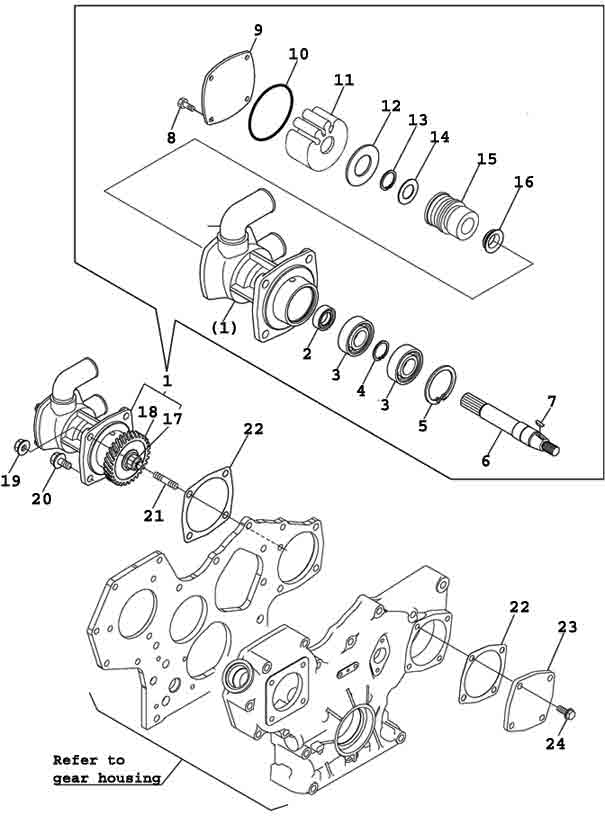

Exploaded view no. 17
Group: Cooling system
Part: Sea water pump, additional

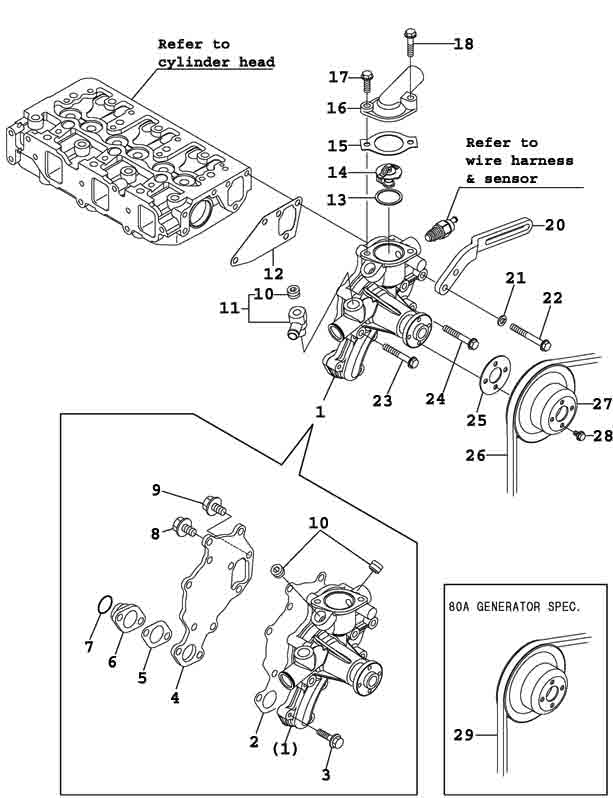

Exploaded view no. 18
Group: Cooling system
Part: Fresh water pump

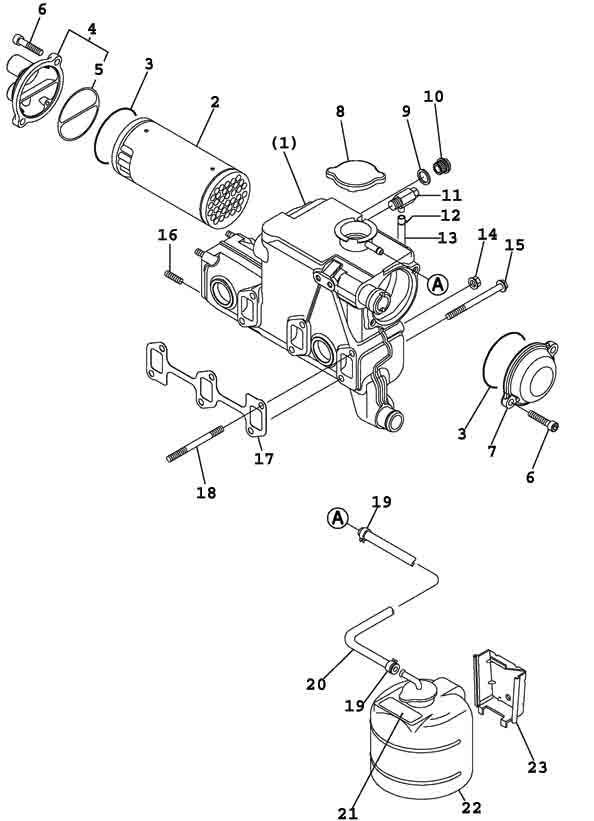

Exploaded view no. 19
Group: Cooling system
Part: Fresh water cooler

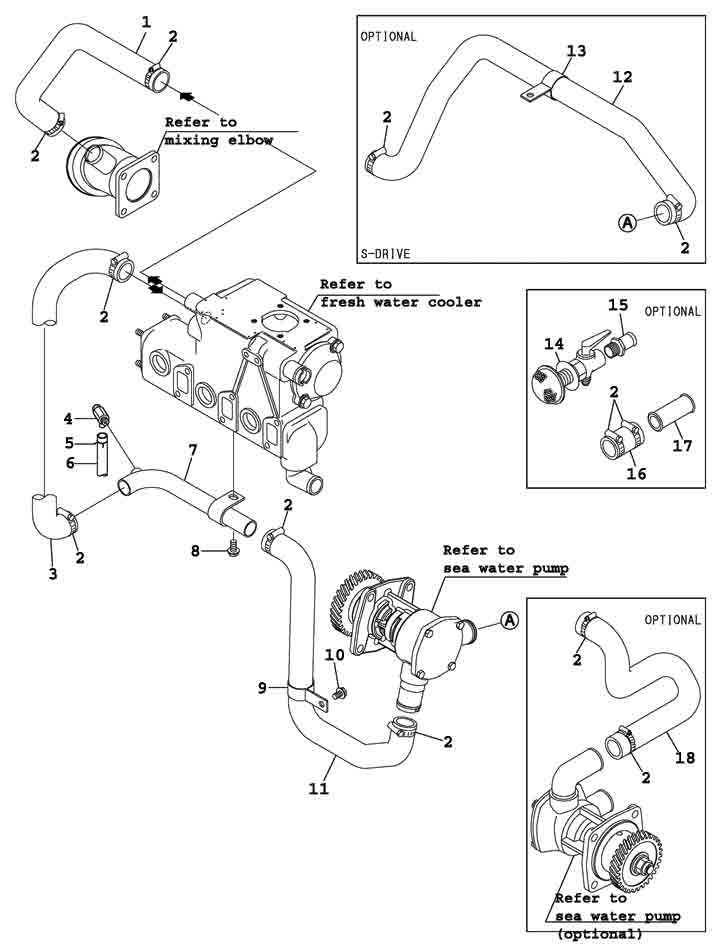

Exploaded view no. 20
Group: Cooling system
Part: Sea water pipes

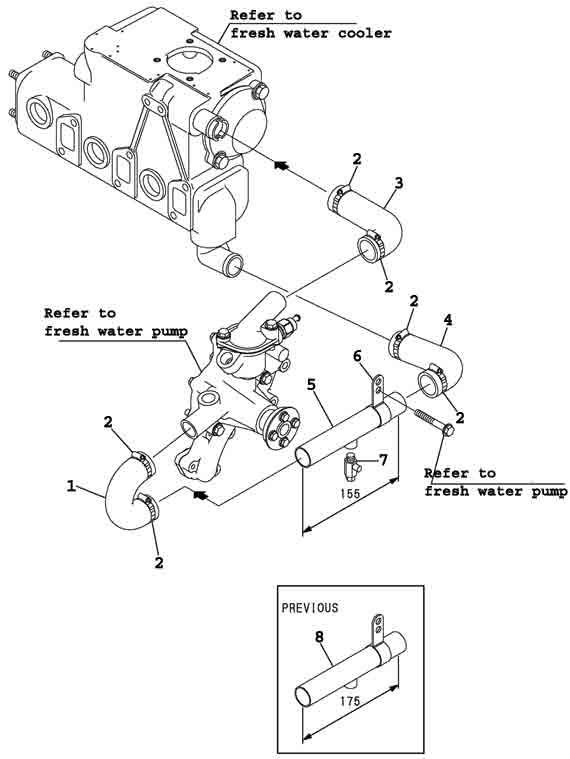

Exploaded view no. 21
Group: Cooling system
Part: Fresh water pipes

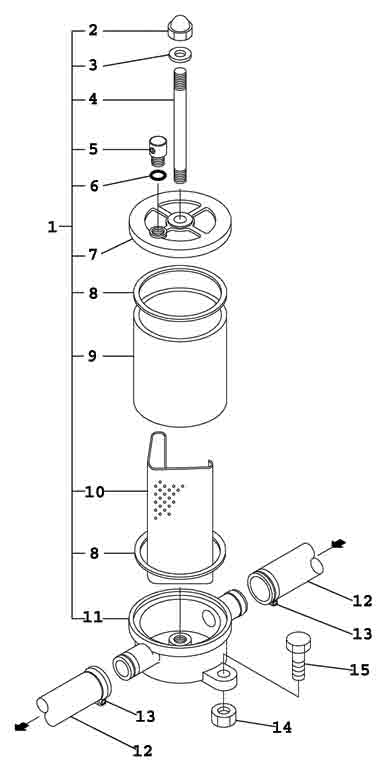

Exploaded view no. 22
Group: Cooling system
Part: Sea water filter



Exploaded view no. 25
Group: Fuel system
Part: Injection pump



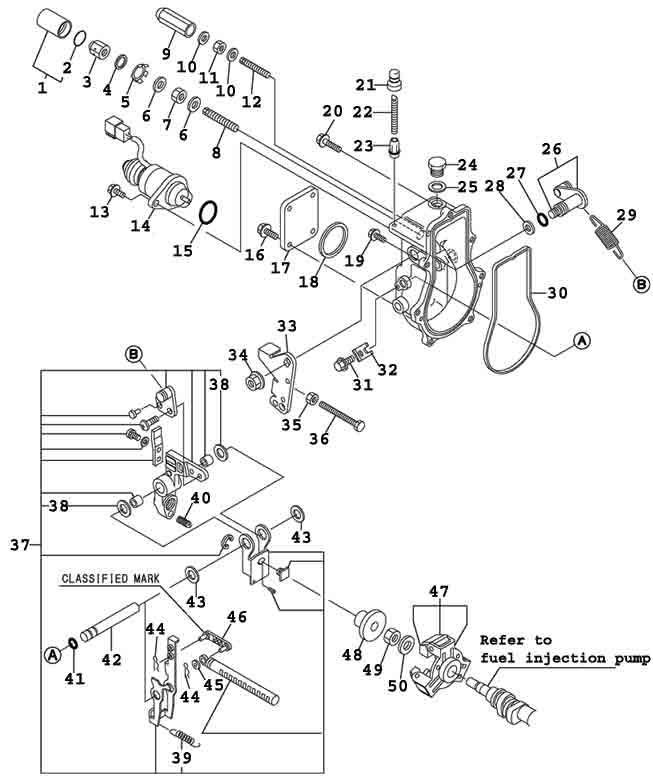

Exploaded view no. 26
Group:
Part:

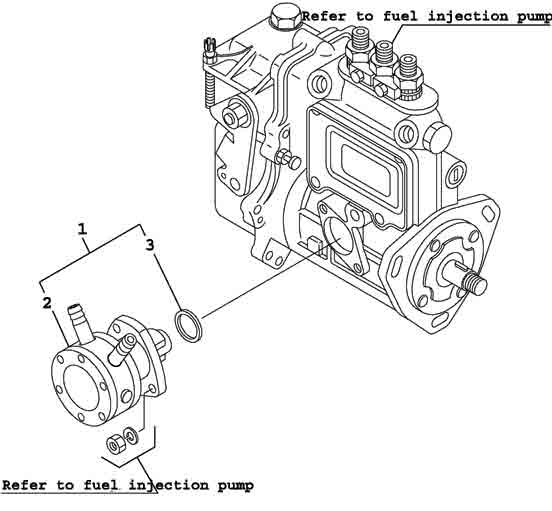

Exploaded view no. 27
Group: Fuel system
Part:

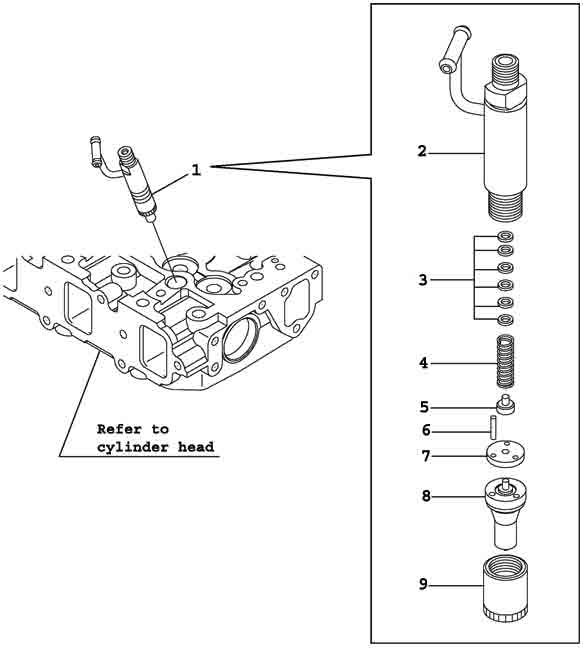

Exploaded view no. 28
Group: Fuel system
Part:



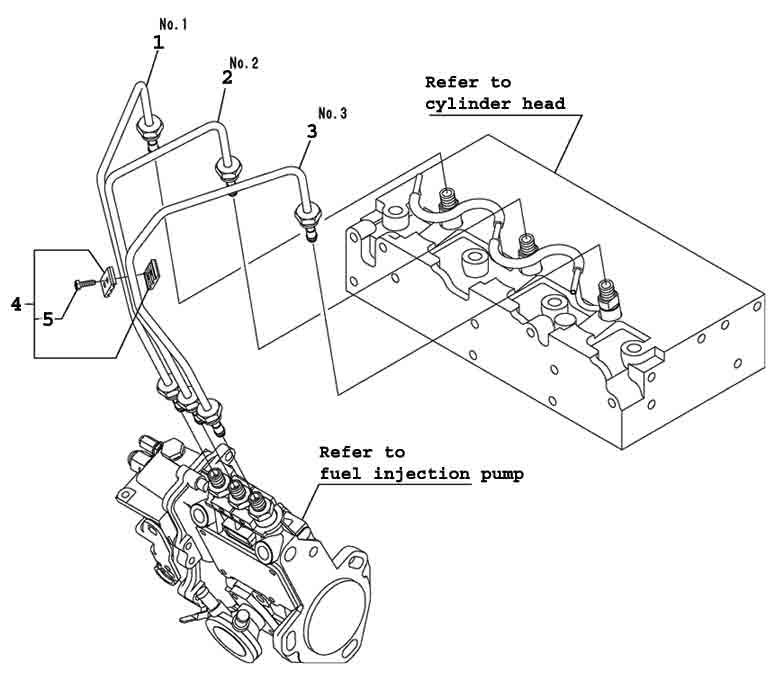

Exploaded view no. 29
Group: Fuel system
Part:

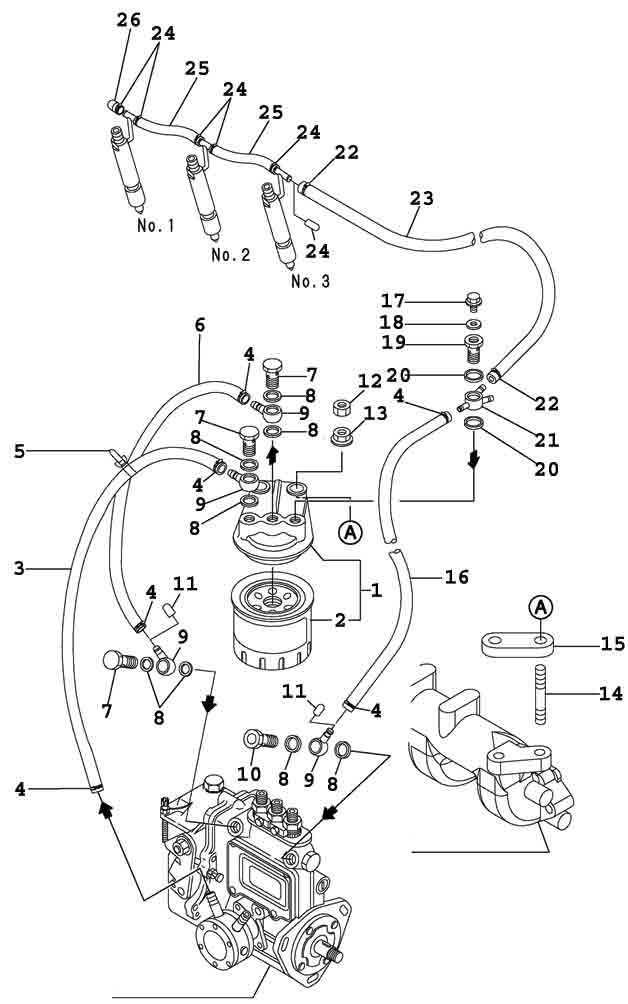

Exploaded view no. 30
Group: Fuel system
Part: Fuel filter and fuel pipes

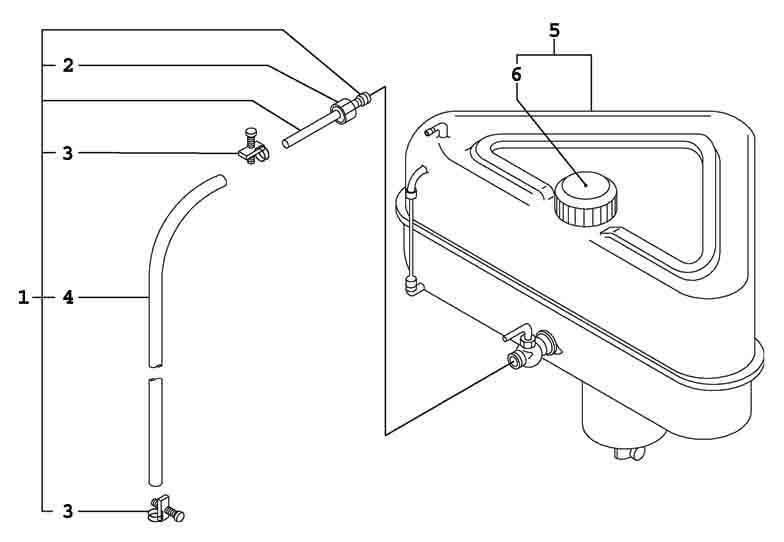

Exploaded view no. 31
Group: Fuel system
Part: Fuel tank, additional



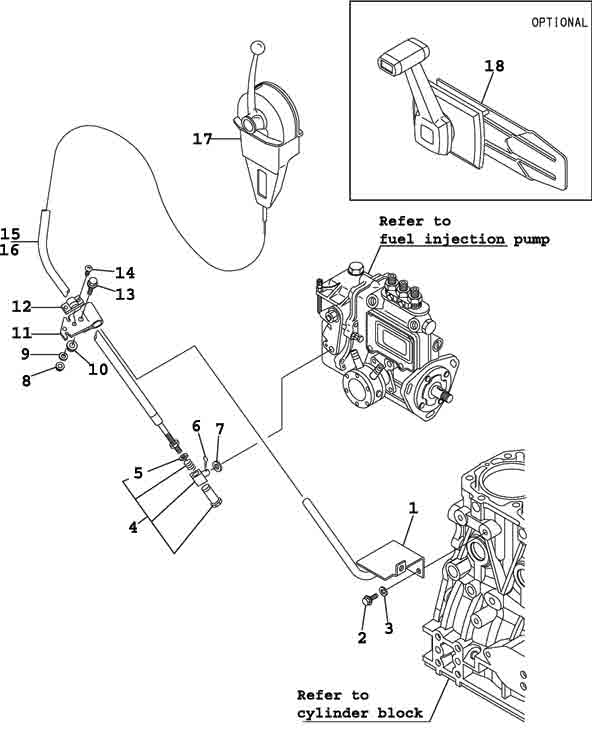

Exploaded view no. 32
Group:
Part:

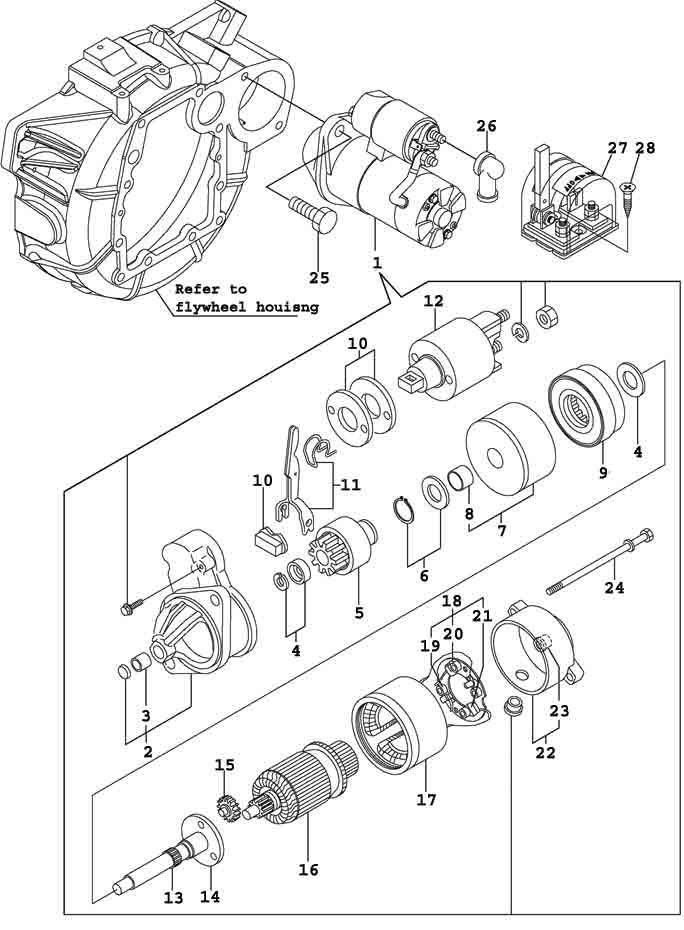

Exploaded view no. 35
Group:
Part:

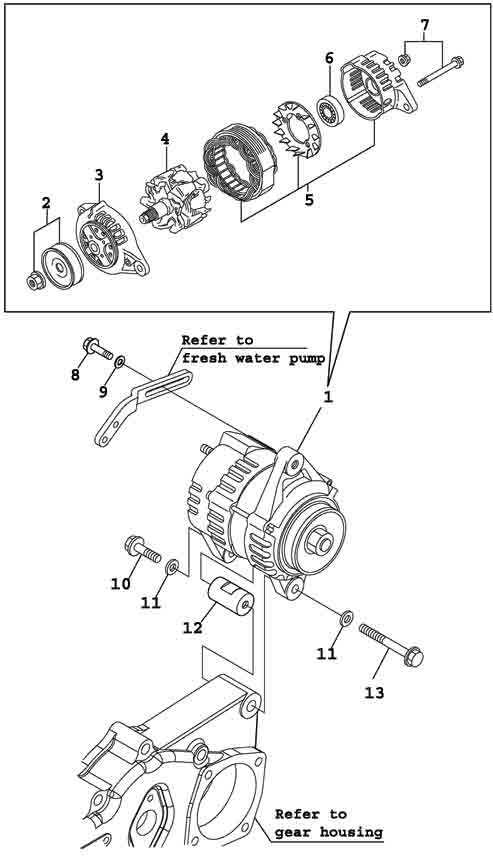

Exploaded view no. 36
Group: Electrical parts and belts
Part:
Generator 12V 60A

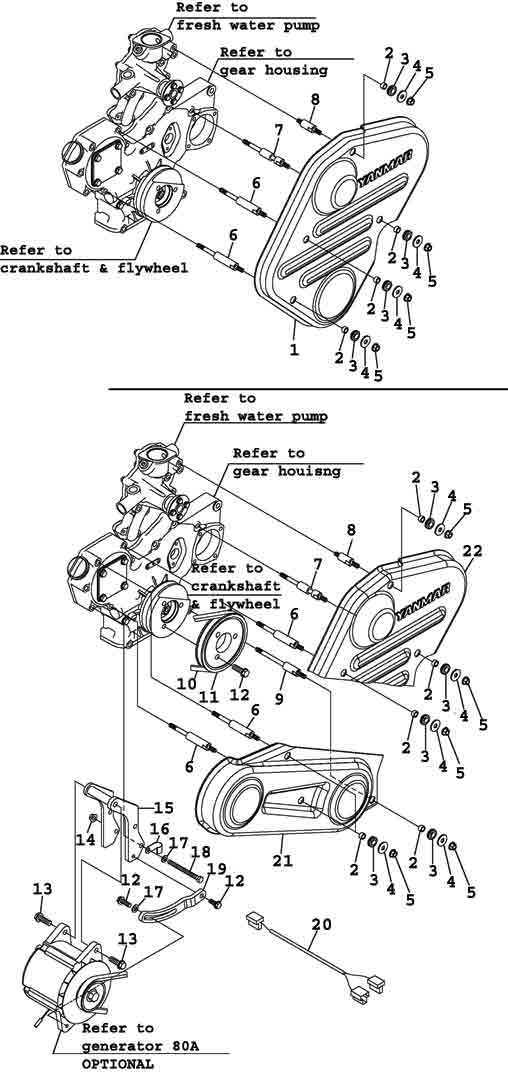

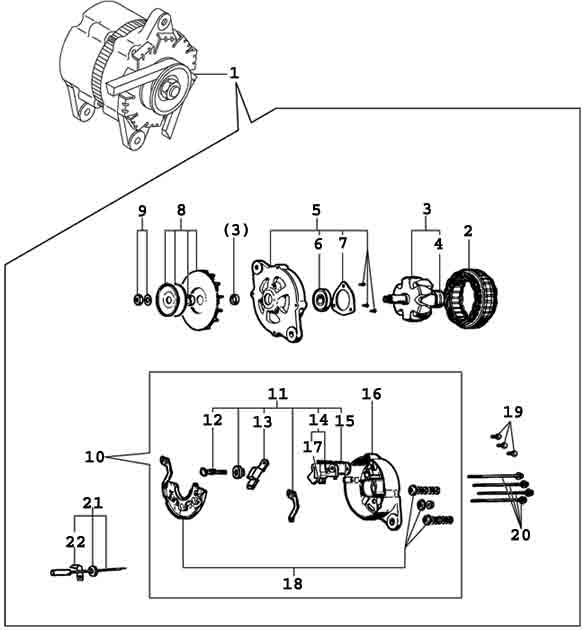

Exploaded view no. 37
Group:
Electrical parts and belts
Part:
Generator 12V 80A, additional



Exploaded view no. 38
Group:
Part:



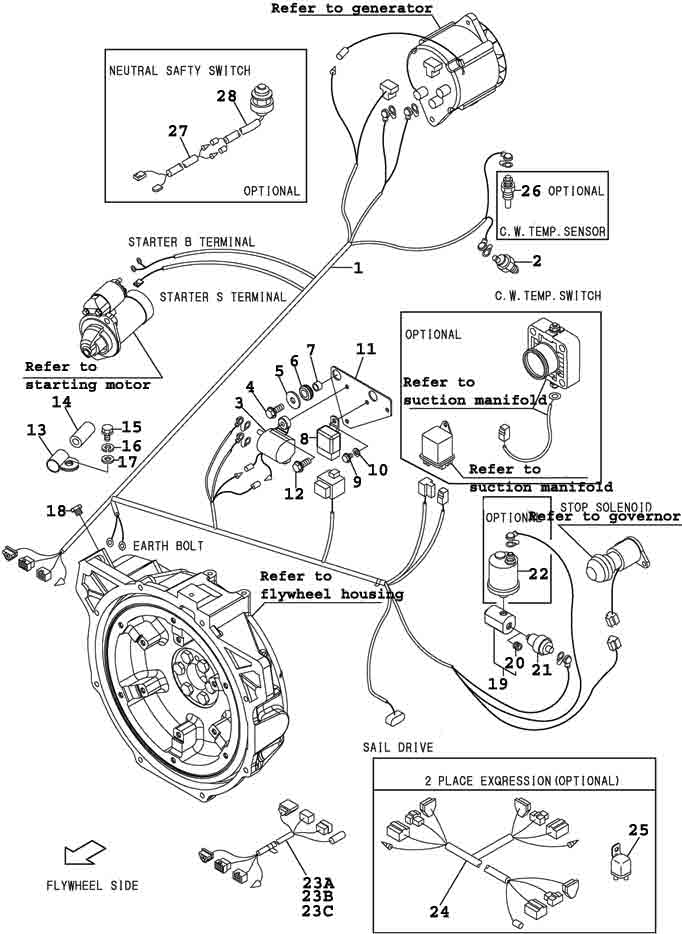

Exploaded view no. 39
Group:
Part:

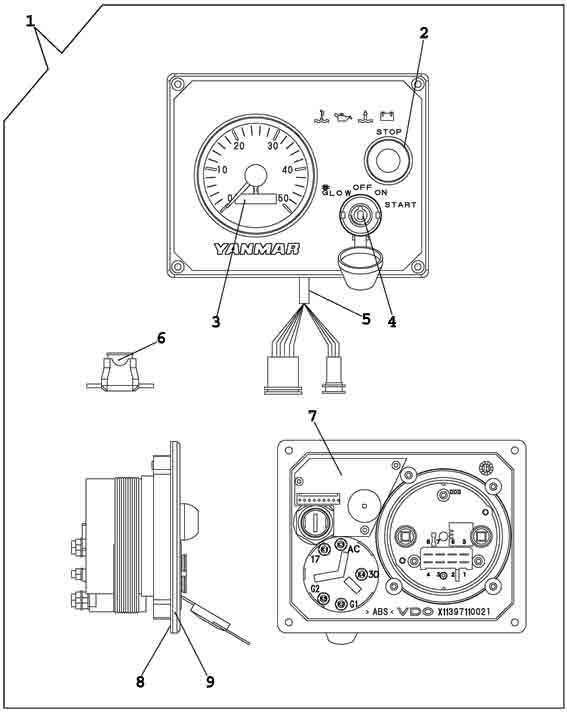

Exploaded view no. 40
Group: Electrical parts and belts
Part: Instrument panel B-type

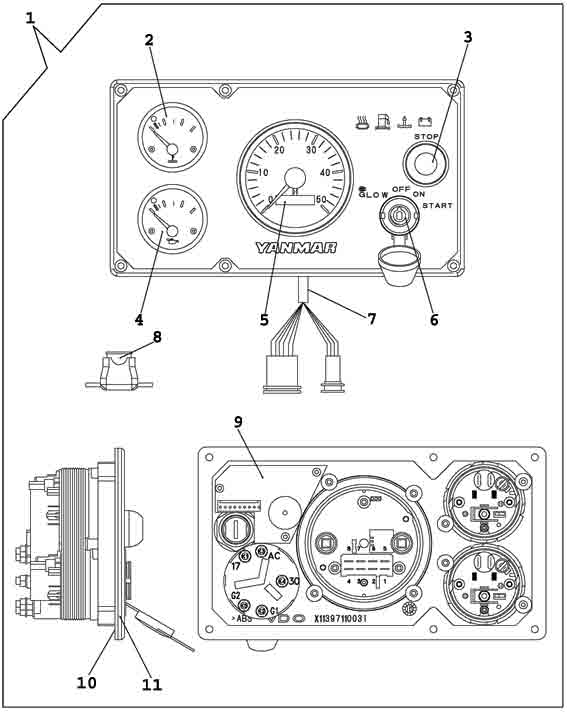

Exploaded view no. 41
Group:
Electrical parts and belts
Part: Instrument panel C-type

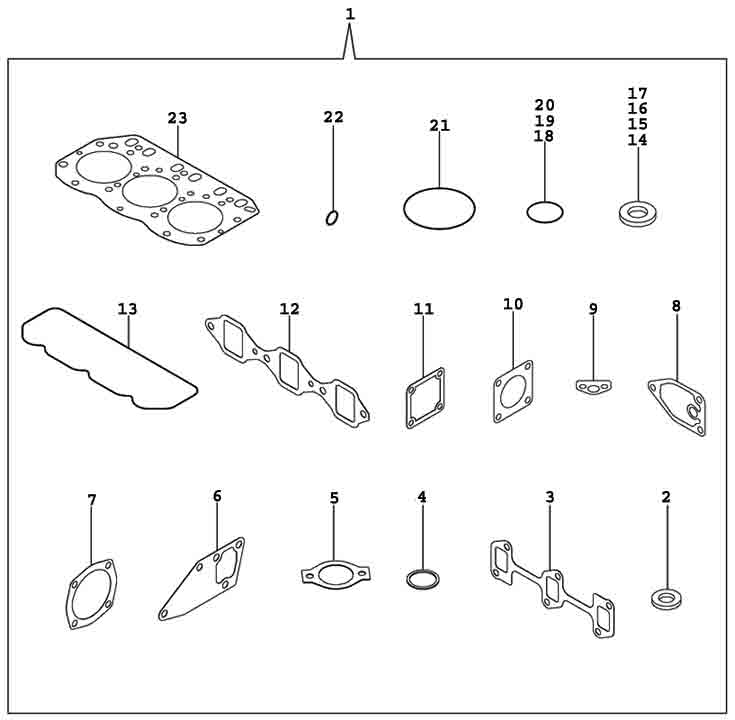

Exploaded view no. 43
Group: Gaskets
Part: Gasket package

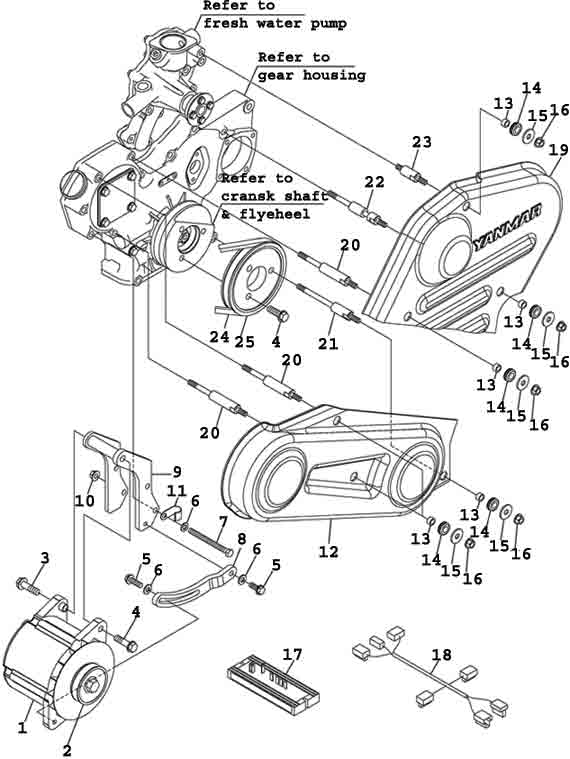

Exploaded view no. 44
Group: Electrical parts and belts
Part: Generator 12V, 140A, fittings, additional
