Electrical parts
2017-01-01

H
ere you'll find various electrical parts that we have found to be missing in the pre-fitted cables that are around the boat but not used.
The description is based on how these cables are fitted in S/Y Älva. If you have different locations, let us know.
We also present spare parts etc that can be useful or alternatives to parts if your contacts would be opposite to ours



This first connectors is to be found in the front cabin port side locker and it is for the 230V cable. In Älva we have the male connector pre-fitted. The female is missing and need to be bought.





Receptacle housing


Art.Nr.

144-19-727

Type

1-480701-0

Gender of contacts

Female

Manufacturer

TE Connectivity

Pitch

6.35 mm

Poles

3, single row

Series

MATE-N-LOK Universal

Connector termination

Crimp termination

Housing Material

Polyamide (PA66)

Retailer

Elfa Distrelec

Link

Click here

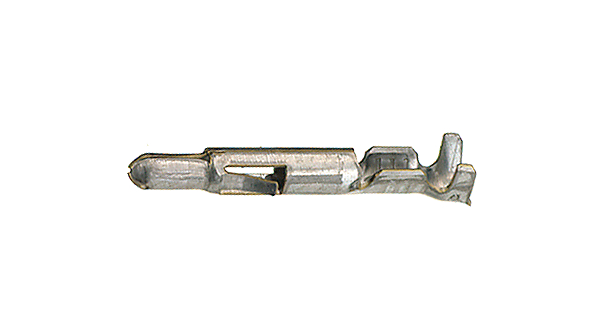

Crimp socket, male


Art.Nr.

144-19-911

Type

926897-1

Gender of contacts

Male

Manufacturer

TE Connectivity

Series

MATE-N-LOK Universal

Connector termination

Crimp socket

Contact Material

Tin-plated brass

Cross-section AWG

24... 18 AWG

Retailer

Elfa Distrelec

Link

Click here





Crimp socket, female

Art.Nr.

144-19-960

Type

926895-1

Gender of contacts

Female

Manufacturer

TE Connectivity

Series

MATE-N-LOK Universal

Connector termination

Crimp socket

Contact Material

Tin-plated brass

Cross-section AWG

24... 18 AWG

Retailer

Elfa Distrelec

Link

Click here

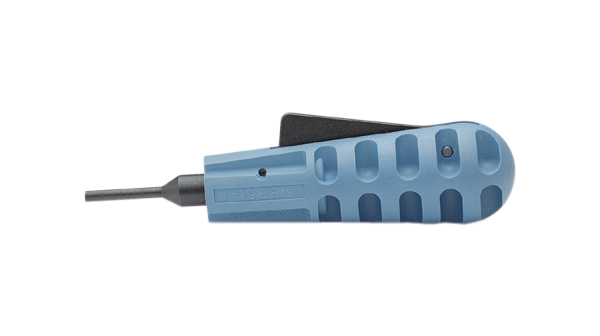

  Extraction tool


Art.Nr.

180-49-207

Type

1804030-1

Manufacturer

TE Connectivity

Connector termination

Crimp socket

Cross-section AWG

24... 18 AWG

Retailer

Elfa Distrelec

Link

Click here

Quite expensive but a professional tool.

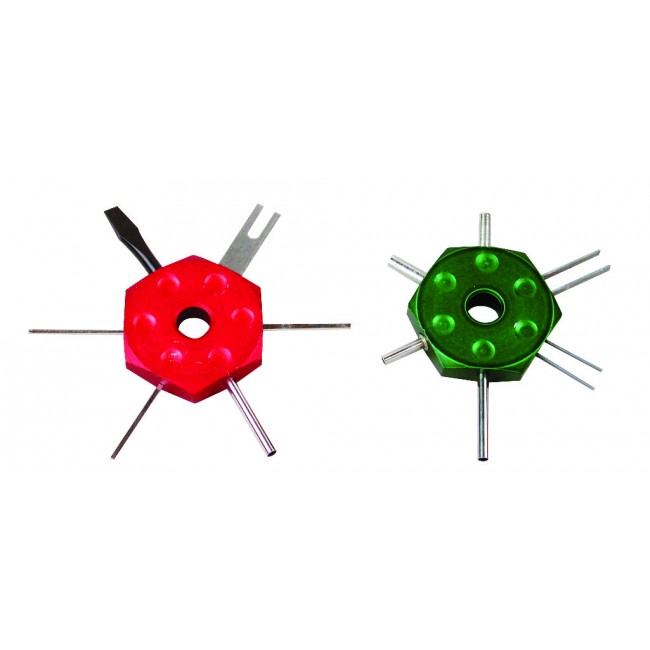

  Extraction tool


Art.Nr.

VE-71068

Retailer

Swedol

Link

Click here

Cheap and works also for flat connectors.
