New Code Zero - Page under construction!


2013-01-22
As all 370-owners know our boats require a little bit more wind in order to be part of a race. Winds below 5 m/s don't really put nautical miles under the keel very fast. To prevent total boredom and the embarrassment of watching other boats pass us by we decided to upgrade the textile engine a little bit. The main requirements were:- easy to handle from the cockpit if possible, light but strong material and of course the sail area. The result was a Code Zero on a furler which made it easy to handle from the cockpit and if the furler failed, it would be easy to collect the sail and stow it under deck. This would not been easy with a laminated sail such as a Code 1 or similar.





Measures SRS Gennaker (Code Zero)

Luff 16.339m
Leech 15.665m
Foot 9.125m
1/2 width 5.937m
1/2 width% 0.65%
Area 82.313m2
Material
Contender SK 90 (Superkote 90)
Gransegel code: RPN 075 (1,1 oz)

Webb: Contender

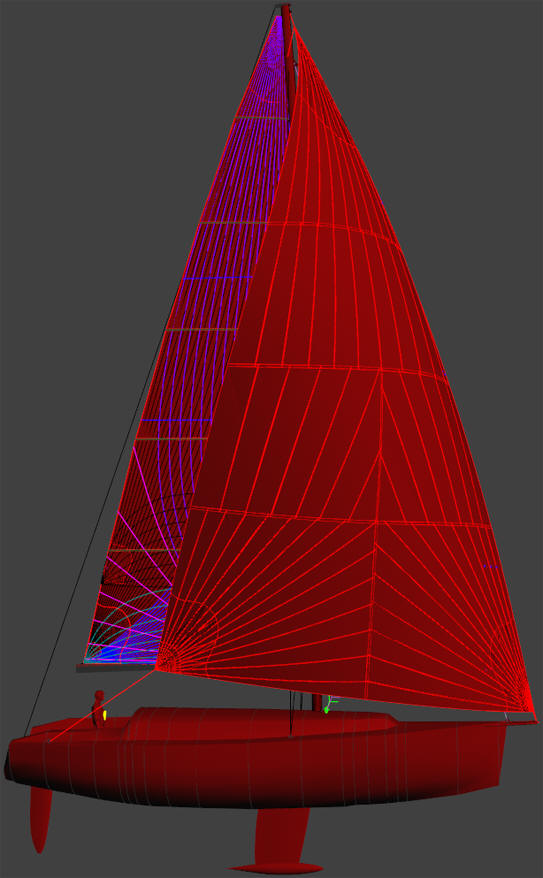

The sail as envisaged by the designer at Gransegel loft.

Click here (or on the picture) for a 3D modelling picture that you can turn around and view from different angles.

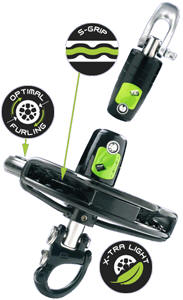

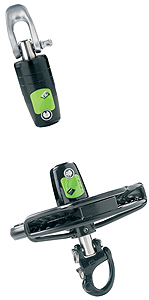

The furler is a Profurl Nex 1.5 that can take loads up to 1500 kg. More about Profurls flying sails furlers with spools here!
