Mainsheet traveler - Lewmar size 2

2022-

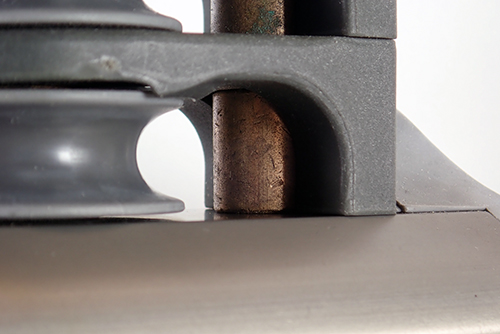

The bearing in the end stops are made of some kind of plastic that did not last for long so we had to find a better solution. We planned first to get them custome made but when we bought the saloon table tension ring we saw that the same company sold bearings in bronze that was of same size as the Lewmar originals.

Since this is not a complicated procedure, or difficult to understand what has been done, we let the pictures talk to them selves.








Materials used:
Sintered bronze/Oil bronze bushing from MecMove AB, Sweden.
Product no. SI 08/14x16 (16mm high, 14mm wide and 8mm hole)
Price per 2024-05-14 27,50 SEK

Supplier: MecMove AB, Skogås, Stockholm +46 8 520 140 00.

Website: click here

Sizes: click here

2026-10-30 From Lewmar Technical Support Manager
In the traveller: 47 Torlon balls on each side (94 in total). A visible gap is required to allow the balls to circulate correctly around the raceway and to prevent them from becoming overloaded or binding during operation

The balls: PN 29172021 - SZ2 Torlon ball spares x 100.
Diameter: 7,8 mm or 5/16".

NB!: When picking out the balls, use a bucket with a towel. They bounce like nothing else and are very, very expensive per each. I have understood that Harkens Torlon balls are much, much cheaper but I havent checked if Harken has the same size of balls.
